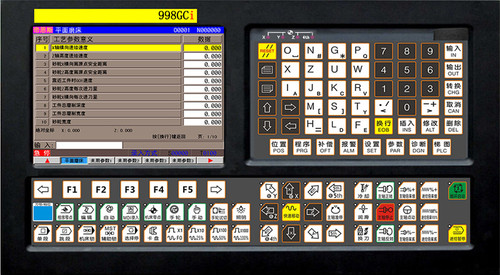

998GCi

998GCi

1〉Main Application Range

 　Suitable　for　flat　grinder,flat　forming　grinder,planogrinder

2>X/Y、Z、C Triaxixes Simultaneous-motioned

 Min setting Unit 0.001mm,0.0001deg

 Max moving speed 21m/min

3>X/Y、Z、C Linear/Rotation　Shaft Control

4>Full　Close　Loop　Control　Function

 Connect　to　grating　ruler　to　relize　full　close　loop　control

 Connect to measuring apparatus to realize processing full close loop monitor,online measure and control(response tolerance<1um)

5>Simple PLC function,can program control function

System I/0 build-in soft PLC control:input 38,output24;user-defined I/O logical control

6>Grinding　Wheel　Dressing,Abrasion　auto-compensating,tool offset

 　System　provides　grinding　wheel　wearing/size　deviation　auto-compensation　function,　it　can　ensure　no　big　tolerance　after　grinding　wheel　dressing　and　wearing.　It　will　record　at　random　without　interruptting　the　processing.

7>Variate　Note　User-defined Interface

 Standard　ISO　code　full-screen　edit,user-defined process parameter input;easy to set processing parameter ans protect the program

8>high　safety　protection　design
